Lincoln Dual Maverick 200/200X (Kubota) Ready-Pak 3 Part#K4382-2-RP3

Description

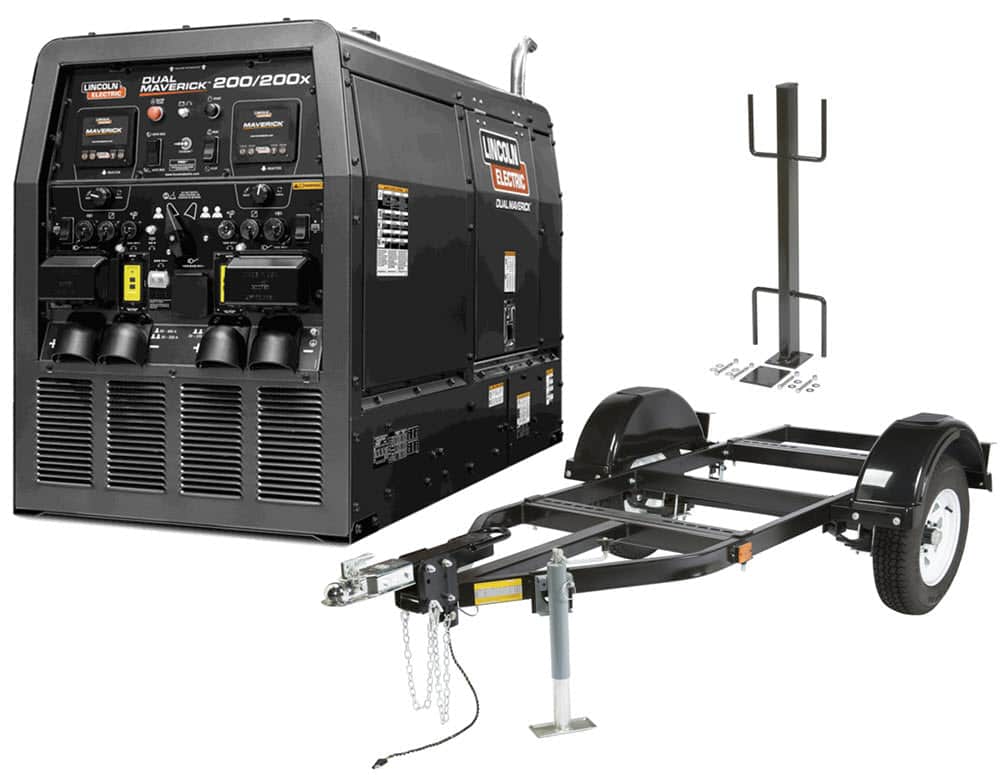

Lincoln® Dual Maverick® 200/200X (Kubota®) Diesel Engine Welder Ready-Pak® 3 K4382-2-RP3

The Lincoln® Dual Maverick® 200/200X (Kubota®) Ready-Pak® 3 is a compact 450 amp multi-operator, multi-process diesel engine welder that comes complete with two-wheel trailer, fender & ligh kit and welding cable rack. The Dual Maverick 200/200X supplies two separate welding arcs of up to 225 amps each, or a single arc of up to 450 amps.  Built-in CrossLinc® circuitry means that the Dual Maverick 200/200X communicates with a Lincoln CrossLinc wire feeder or CrossLinc remote control directly through your welding leads. Full remote amperage and voltage control is achieved without the use of a separate remote-control cable. This completely eliminates the need to go back to the welding machine to make output amperage or voltage adjustments. Other advanced features include two 4.3-inch digital user interfaces, specialized stick welding modes and direct-connect spool gun circuitry with pulsed MIG welding capabilities.  Best-in-class arc characteristics provide outstanding welding results, time after time.

The Dual Maverick 200/200X produces up to 11,500 peak watts, and 10,000 continuous watts of single-phase AC auxiliary power. The Kubota® D902 three-cylinder, naturally aspirated diesel engine produces 24.8 horsepower at 3,600 RPM and is Tier 4 Final compliant.  Variable RPM technology automatically adjusts engines speed based on the output load.  This lowers fuel consumption and reduces noise.  Auto Start/Stop feature saves fuel by shutting the engine down after a programmable period of welding inactivity.  The engine automatically re-starts when the machine senses you are ready to strike a welding arc.

Processes

• Stick (SMAW)
• MIG (GMAW)
• Flux-cored (FCAW)
• DC TIG (GTAW)
• Air carbon arc (CAC-A) Rated: 1/4-inch (6.5 mm) carbons

Applications
Maintenance & Repair
Pipeline
Power Generation
Structural

Features:

• Optimized Operations
  Utilizes a single engine to offer two welding arcs with up to 200 amps of output or choose single operator mode for one arc up to 450 amps of output to promote a more efficient welding environment. Save space and make transportation easier moving one machine instead of two!
• Advanced User Interface
  Features two 4.3″ weatherproof LCD screens with an intuitive interface to provide easy setup and increased functionality, and automatically notifies operators of upcoming maintenance needs to help keep the machine running at peak performance.

• CrossLinc® Enabled
  Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter.
• Built-in True Voltage Technology™ (TVT)
  Compensates for voltage drop to further improve operations.
• Direct connect with Magnum® PRO 250LX GT spool gun
  Each of the control panels features a receptacle for a direct spool gun connection.
• Quiet Operation
  Designed to run at lower noise levels to allow for vital directions or control-related communication near the welding machine to help promote a safer and more ideal welding environment by reducing worksite noise.
• Fuel Savings
  Help to increase fuel savings with variable engine RPM based on welding output level and auto stop/start functionality to avoid excessive idling.
• Industrial Diesel Engine
  Powered by a 24.8 HP, naturally aspirated Kubota® diesel engine. Runs smooth and quiet while meeting EPA Tier 4 Final compliance.

Comes complete with

• Lincoln® Dual Maverick® 200/200X diesel engine welder

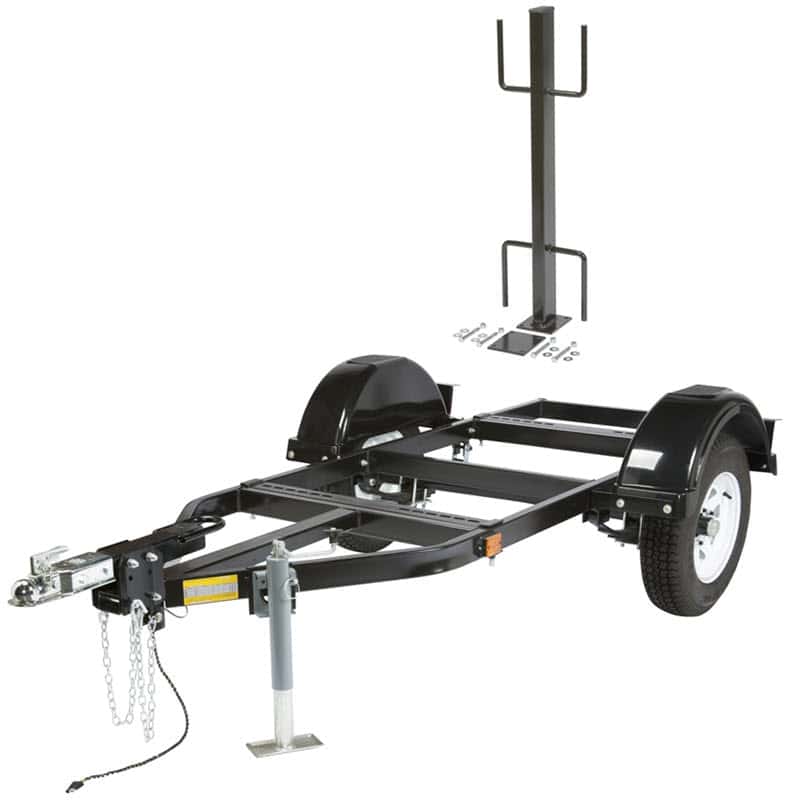

• K2636-1 medium-duty, two-wheel trailer
• K2639-1 fender and light kit
• K2640-1 cable rack
