Miller XMT 400 ArcReach w/ArcReach Stick/TIG Remote Par#951000114

Description

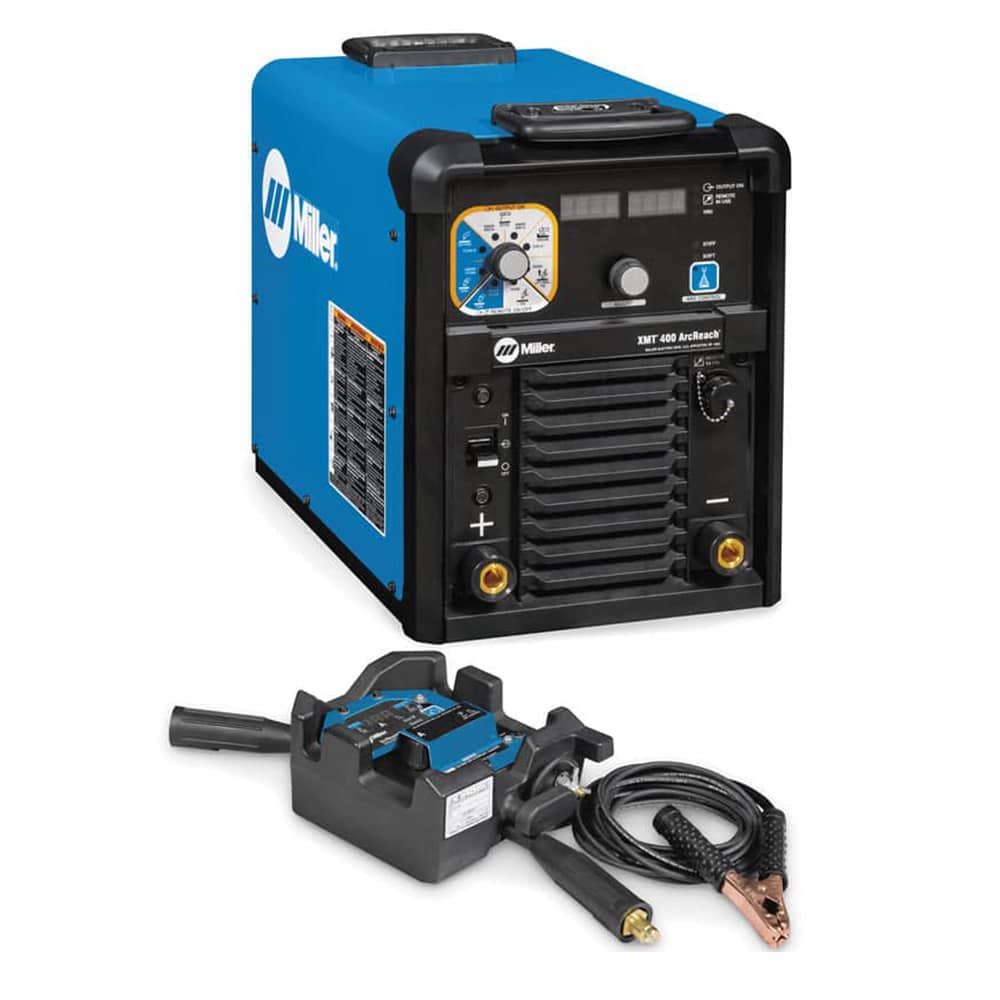

Miller® XMT® 400 ArcReach® with ArcReach® Stick/TIG Remote Control 951000114

The Miller® XMT® 400 ArcReach®, with ArcReach® Stick/TIG Remote, is a portable 400 amp multi-process welder package that comes complete with an ArcReach Stick/TIG remote control. The welder communicates with the remote Miller® ArcReach® Stick/TIG remote without the use of a remote control cable. The secret to this technology is built-in circuitry in both the XMT 400 ArcReach welder and ArcReach remote control that passes control signals through the welding leads, eliminating the need for costly remote control cables. ArcReach remote control distance is limited only by the length of your welding cable leads. ArcReach allows your Stick or TIG welding operation to take place further away from the welding power source, and reduces downtime and costs by giving the operator full remote control capabilities at the site of the weld. The XMT 400 ArcReach can also be paired with a Miller ArcReach wire feeder, for MIG or Flux-cored welding applications.

The XMT 400 ArcReach weighs only 75 lbs., and is capable of MIG, pulsed-MIG, Stick and DC TIG welding. It operates on both three-phase and single-phase input power and features Miller’s Auto-Line,™ which means you can use 208 volt to 575 volt, single or three-phase input power, without manual linking. Cable Length Compensation (CLC™) automatically adjusts the welder’s output to compensate for voltage drops over long welding cable runs – maintaining consistent output current.

The XMT 400 ArcReach is easy to move around the shop or jobsite. Its rugged case design ensures it will stand up to the punishment of extreme work environments. The XMT 400 ArcReach can carbon arc gouge with carbons up to 5/16″ diameter. When paired with a wire feeder or spool gun, it makes an excellent MIG and Flux-Cored welder. It also features built-in Lift-Arc™ TIG arc starting for smooth DC TIG arc starts without the use of high frequency.

Processes

• MIG (GMAW)
• Pulsed MIG* (GMAW-P)
• Regulated Metal Deposit* (RMD®)
• Stick (SMAW)
• DC TIG (GTAW)
• Flux Cored (FCAW)
• Air Carbon Arc (CAC-A) Cutting and Gouging* With optional ArcReach® Smart Feeder OnlyApplications
  Heavy Industrial Applications
  Construction
  Shipbuilding
  Railroad
  Truck and Trailer Manufacturing
  Fabrication
  Repair Shops
  Rental Fleets

  Features

• ArcReach Stick/TIG Remote Included
  ArcReach® Stick/TIG Remote with Tweco® connectors uses the existing weld cable to communicate welding control information between the remote and the XMT 400 ArcReach. This technology eliminates the need for control cords, and their associated problems and costs.
• Cable Length Compensation (CLC™)
  Means output is automatically adjusted at the power source to account for voltage drop due to long weld cables, ensuring the operator’s preferred weld parameters.
• Regulated metal deposition (RMD®) and pulsed MIG
  Are fully supported, enabling operators to use these advanced processes in the field for faster, more efficient welds.
• Jobsite mobility
  Is made easy with the smallest and lightest machine in its amperage class.
• True multiprocess system
  Provides conventional stick, TIG, FCAW, and MIG welding as well as the advanced technologies of RMD and pulse.
• Fleet compatibility
  ArcReach-equipped welders and wire feeders work with non-ArcReach equipment; however, the complete ArcReach benefit is only realized with the ArcReach system

• Auto-Line™
  Provides state-of-the-art flexibility by automatically connecting to 208-575 VAC, single- or three- phase power without removing the covers to re-link the power source. No longer is there a concern if you have the correct machine for the shop or the job site.
• Wind Tunnel Technology™
  Internal air flow that protects electrical components and PC boards from dirt, dust and debris… greatly improving reliability.
• Fan-On-Demand™
  Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
• Universal connector system
  Quickly and easily allows the machine to be configured to either Tweco®, Dinse, or Cam-Lok-style receptacles. (Welder ships with Tweco®-style receptacles installed
• More control for weld operators
  Quick, easy adjustments at the wire feeder/remote.
• Adjust While Welding (AWW™)
  Change weld parameters while the arc is on.
• Return to a previous weld process faster
  The welder is restored to the previously used weld process and parameter settings once the ArcReach accessory is removed.
• Auto-Process Select™
  Automatically sets the power source to the correct weld process based on the polarity applied to the weld accessory.
• Process selector switch
  Reduces the number of control setup combinations without reducing any features.
• Adaptive Hot Start™
  Helps promote a fast positive arc ignition helping minimize defects.
• Infinite arc control
  Available in the stick and wire modes for easier fine tuning of tough-to- weld materials and out-of-position applications.
• OPTIONAL gas solenoid for TIG welding.

  Comes complete with

• XMT® 400 ArcReach® with Tweco®-style receptacles
• ArcReach® Sick/TIG remote control with Tweco® connectors
