Miller Multimatic 215 With TIG Kit Part#951674

Description

Miller Multimatic™ 215 With TIG Kit 951674

The Miller Multimatic™ 215 multi-process welder with TIG Kit is a 230 amp, complete portable MIG, Stick and DC TIG welding package. It comes standard with a color LCD screen and features Miller’s Auto-Set™ Elite. Auto-Set™ Elite sets MIG, Stick and TIG welding parameters automatically, all you need to do is enter metal thickness and welding wire or tungsten electrode diameter. It also allows you to fine tune weld settings manually to suit your individual preferences.

The Multimatic™ 215 runs on either 120 volt or 240 volt input power, using Miller’s exclusive multi-voltage plug (MVP™) and weighs only 38 pounds. It comes complete with Miller M-100 MIG welding gun, Weldcraft™ 150 amp TIG torch with accessories, stick electrode holder and ground clamp.

Processes
MIG (GMAW)
Stick (SMAW)
Flux Cored (FCAW)
DC TIG (DC GTAW)

Features

• Multiprocess capabilities allow for MIG, flux-cored, DC TIG and DC stick welding.

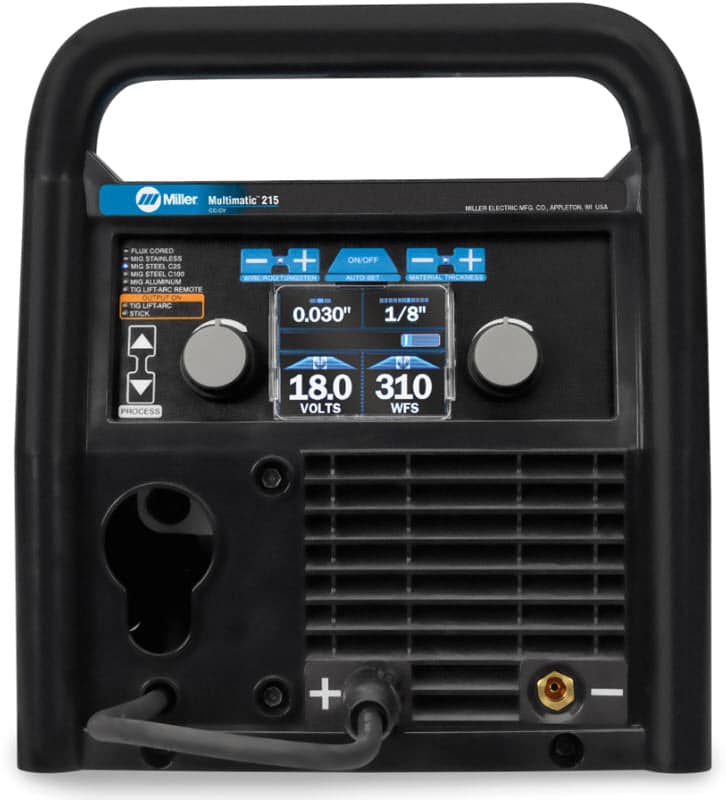

• Intuitive color LCD user interface makes it quick and easy to adjust parameters.
• Auto-Set™ Elite can be used on multiple materials and multiple processes with the ability to fine tune your settings. Easy to set up and use.
• Multi-voltage plug (MVP™) allows you to connect to 120 or 240 V power receptacles without the use of any tools – choose the plug that fits the receptacle and connect it to the power cord

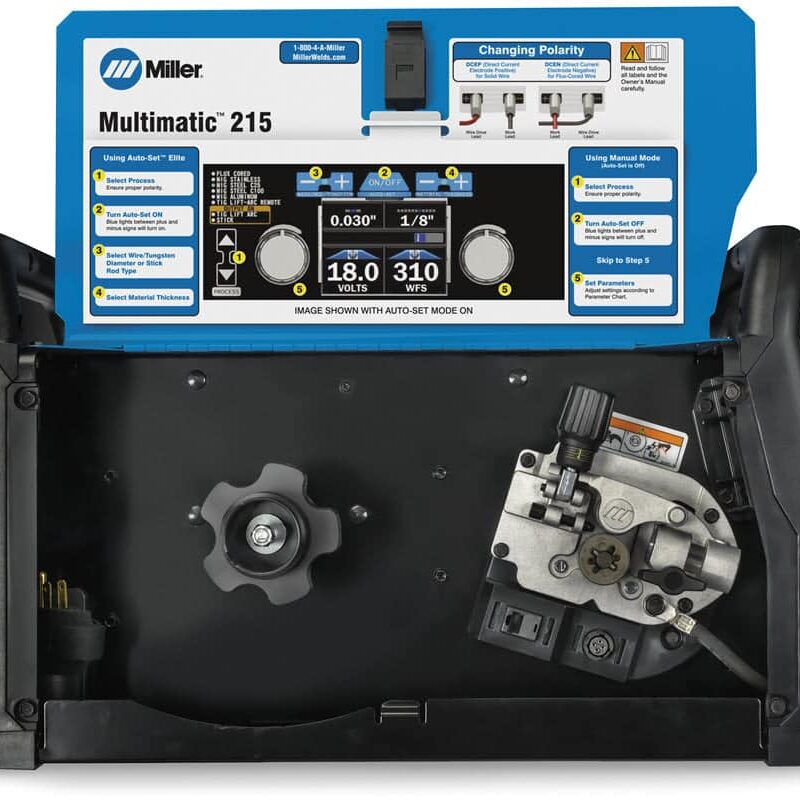

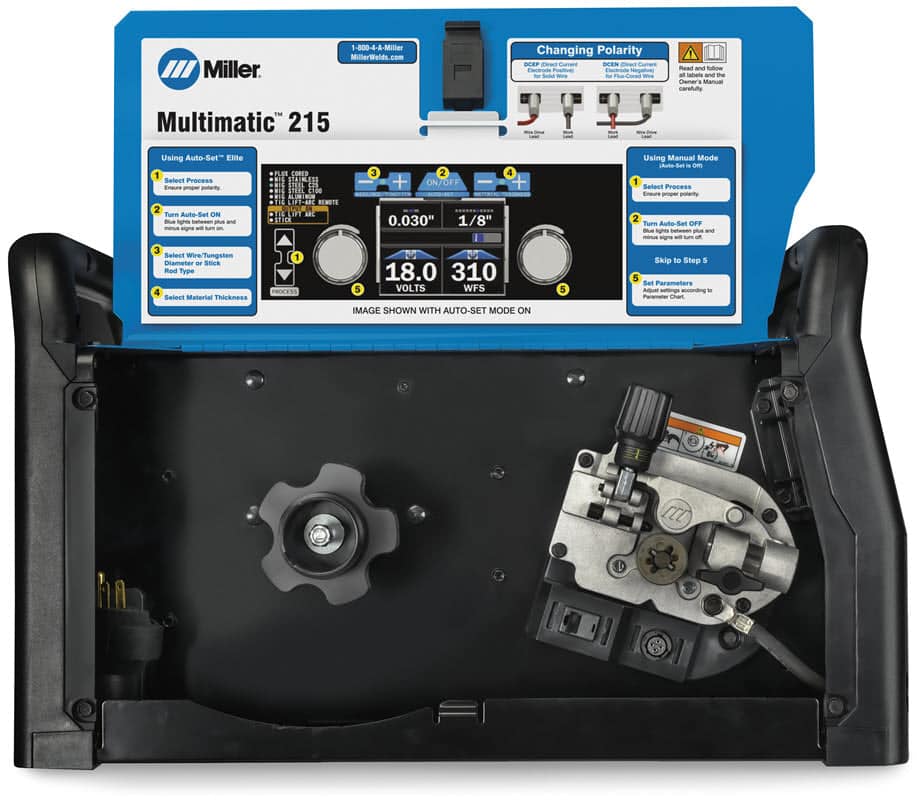

• Angled wire drive with Quick Select™ drive roll for smooth feeding and quick wire changes.
• Smooth-Start™ for consistently smooth, spatter-free MIG starts.
• Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
• Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.
• Thermal overload protection automatically shuts the power source down if airflow through the unit is blocked or the duty cycle is exceeded.
• INCLUDED TIG Kit – gives you everything you need for remote TIG welding with the Multimatic 215. Includes RFCS-RJ45 remote foot control, Weldcraft® 150-amp WP17 TIG torch with 25-mm Dinse connector, AK-2 torch accessory kit, regulator and gas hose.
• OPTIONAL Spoolmate™ 100 OR Spoolmate™ 150 direct-connect spool gun. The Spoolmate 100 is ideal for running 4043 aluminum and solid MIG wire sizes .023 to .035 diameter. The Spoolmate 150 runs both 5356 and 4043 aluminum and solid MIG wire sizes .030 to .035 diameters

  Specs



  This is a DC only machine. It cannot TIG weld Aluminum

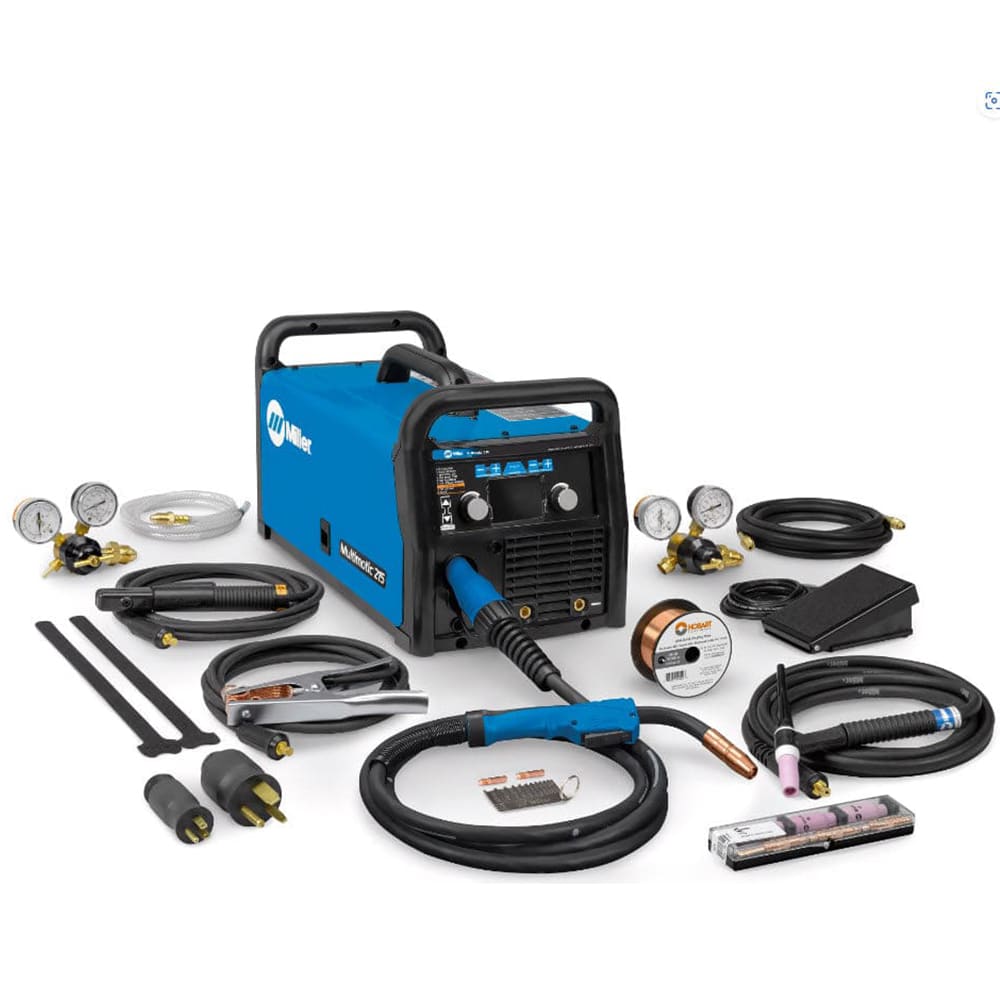

  Comes complete with

• Multimatic™ 215 multi-process welder
• 6.5 ft. (2 m) power cord with MVP plugs for 120 V and 240 V
• 10 ft. (3 m) MDX™-100 MIG gun and cable assembly
• 13 ft. (4 m) cable electrode holder and 25 mm Dinse-style connector
• 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
• 2 – Flow gauge regulators and gas hose for argon and AR/CO2 mix
• Hobart® spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
• Weldcraft™ A-150 TIG torch with flow-through Dinse-style connector
• RFCS-RJ45 foot control
• AK2C TIG torch accessory kit
• Material thickness gauge #229895
• Hook-and-loop cord wraps
