Miller Invision 352 MPa MIG Welder Part#907431

Description

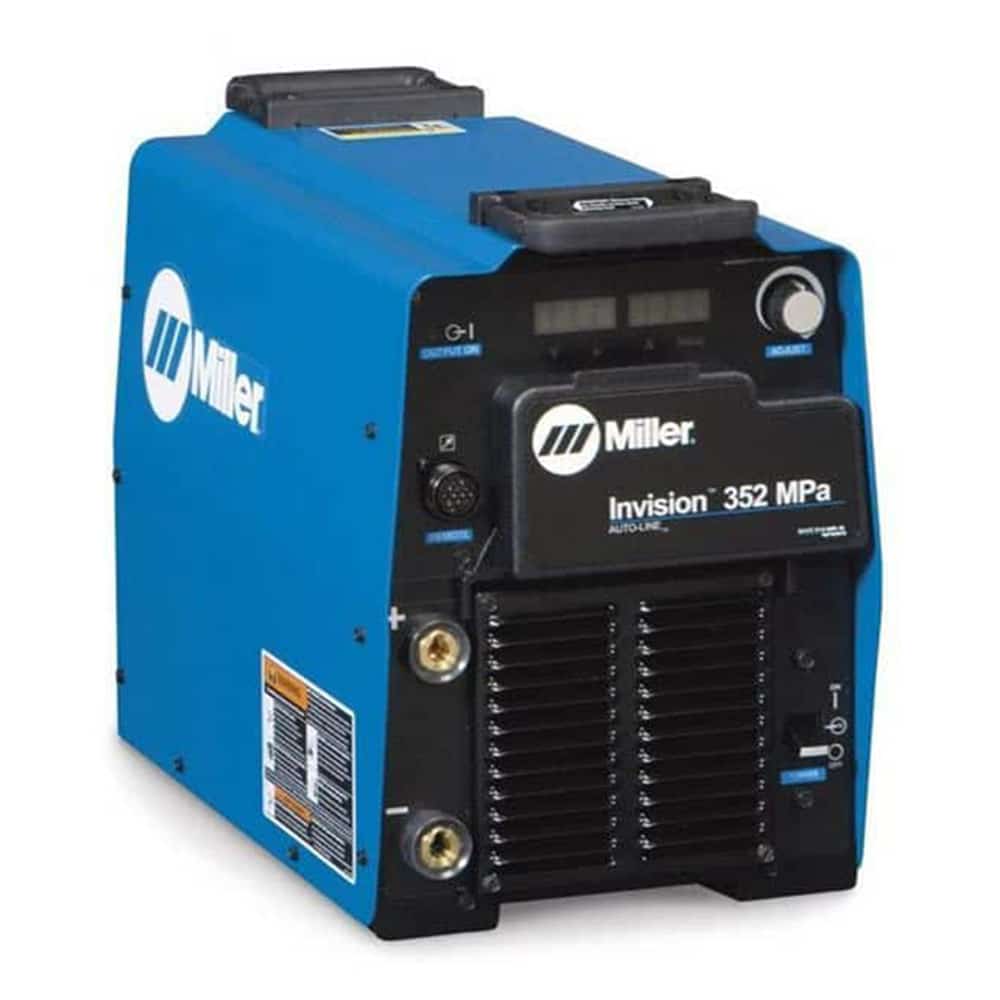

Miller® Invision™ 352 MPa MIG Welder 907431

The Miller® Invision ™ 352 MPa is a 425 amp MIG/Pulsed MIG welding power source. When combined with a push and/or push-pull wire feeder, the 352 MPa is capable of advanced, industrial pulsed MIG welding operations using a variety of welding wires.

The Invision 352 MPa features synergic pulsed MIG for true “one knob” control. It comes standard with Miller’s AutoLine™ technology, which allows the welder to work with 208-575 volt input power, single or three phase, without manual linking. Despite the advanced features, set up is quick and easy.

Processes

• MIG (GMAW)
• Pulsed MIG (GMAW-P)
• Flux Cored (FCAW)
• Air Carbon Arc (CAC-A) Cutting and Gouging (1/4 in. carbons max)Applications
  Heavy Industrial Applications
  Railroad
  Truck/Trailer Manufacturing
  Light Gauge and Tube
  Lawn and Garden Equipment
  Recreational Vehicles

  Features

• Push-Pull Aluminum Capability – Easy to set up. Select wire diameter, wire type and gas being used, set your wire speed and strike an arc.
• Synergic Pulsed MIG provides communication between the power source, feeder and gun. As wire speed increases/decreases, the pulse parameters also increase/decrease to match the right amount of power needed.
• Alumination technology allows use of extended reach push-pull gun for consistent, versatile and dependable aluminum wire feeding.
• SharpArc technology fine tunes puddle fluidity in Pulsed MIG (GMAW-P) welding.

• Profile Pulse Achieve stacked dime weld bead appearance without back-stepping.

• Synergic one-knob control makes adjustments easy. Set the wire feed speed control and the system handles the rest.
• Exceptional electrical efficiency. At 400A, efficiency is 87.24%!
• 350 A of welding output at 60% duty cycle with superior low-end performance.
• Power factor of .95 enables smaller fuses/ breakers and primary wiring. Primary amperage draw at rated output is 25% less than the competition.
• Ultra-tough, polycarbonate-blended cover for control panel protects front controls from damage.
• Dual feeder capable so you can always have two wires ready as particular jobs change, saving time and money with less set-up.
• Auto-Line Power Management Technology allows for any input voltage hook-up (208 575 V) with no manual linking required, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
• Fan-On-Demand cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
• Line Voltage Compensation keeps welding output constant even if input power varies by +/- 10%. 350 MPa models further expand line voltage compensation on 460 VAC to an amazing +37%,-59%.
