Miller Bobcat 265 Air Pak w/Battery Charge Part#907876

Description

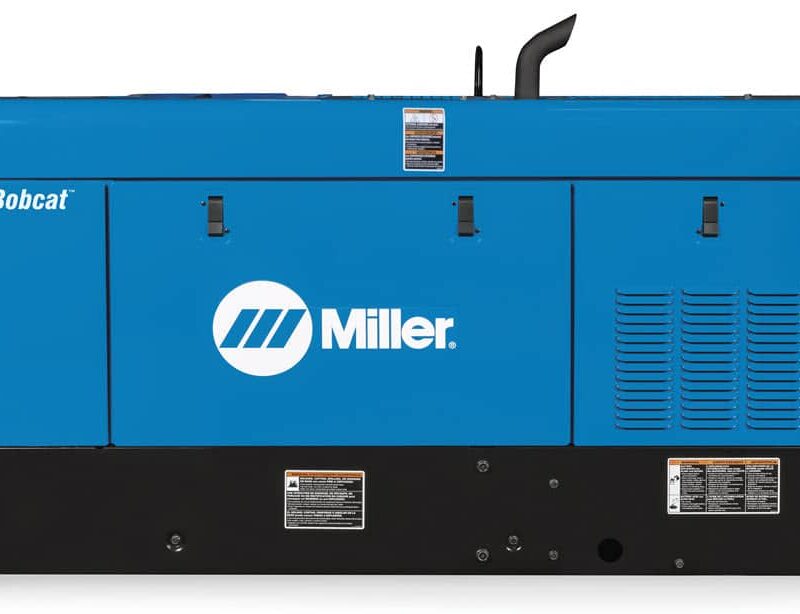

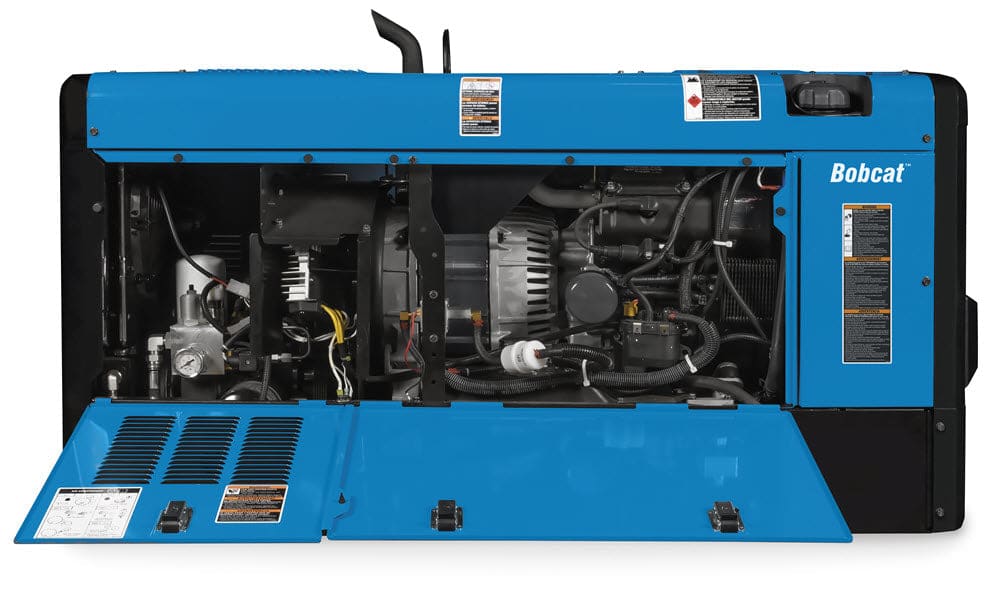

Miller® Bobcat™ 265 Air Pak™ Engine Driven Welder with Battery Charge/Crank Assist 907876

The Miller® Bobcat™ 265 Air Pak™ with Battery Charge/Crank Assist is a 265 amp DC welder and 11,000 watt AC generator that comes complete with a built-in 30 cfm air compressor. The industrial rotary screw air compressor delivers 80-160 PSIG @ 100% duty cycle, with no storage tank.  There are four convenient access points for compressed air connections.  The compressor runs most types of impact wrenches, even while the Bobcat’s engine is at idle. Continuous 9,500 watts of auxiliary power are available at all times, even while operating at 100% welding output.  Auxiliary power outlets include two 120 volt duplex w/GFCI, one 240 volt receptacle with circuit breaker, and one 120/240 volt receptacle with circuit breaker. The Bobcat 265 Air Pak can also charge and jump start dead batteries, when paired with OPTIONAL #300422 charging cables.

The Bobcat 265 Air Pak is smaller and lighter than previous Bobcat Air Pak models.  It is specifically designed to take up less room in your truck. Miller’s exclusive AutoSet™ technology allows you to access pre-programmed welding parameters, based on metal thickness and welding process, for easy set up.  You can also fine tune your output amperage and voltage manually, to suit your welding style.

The Miller Bobcat 265 Air Pak features a Kohler® 27 horse power CH749 gasoline engine with electric fuel pump. A large LCD screen displays welding output,  maintenance intervals. engine hours and fuel level.  The Bobcat 265 provides both CC and CV welding output for stick, DC TIG and MIG welding operations. Need to weld aluminum using a Miller Spoolmatic® or Spoolmate™ 200 spool gun? The Bobcat 265 Air Pak features a direct 10-pin receptacle, no need for a WC-24 weld control.  This welder comes complete with Miller’s True Blue® 3 year warranty.

Processes

• Stick Welding (SMAW)
• Flux Cored Welding (FCAW)
• MIG Welding (GMAW) – with OPTIONAL wire feeder
• DC TIG Welding (GTAW)
• Air Plasma Cutting and Gouging with optional Spectrum® plasma cutterApplications
  Industrial Applications
  Maintenance
  Repair
  Farm/Ranch Applications
  Fabrication
  Structural Steel Work
  Use as a Stand-Alone Generator


  Features

• Rotorcomp industrial rotary-screw air compressor

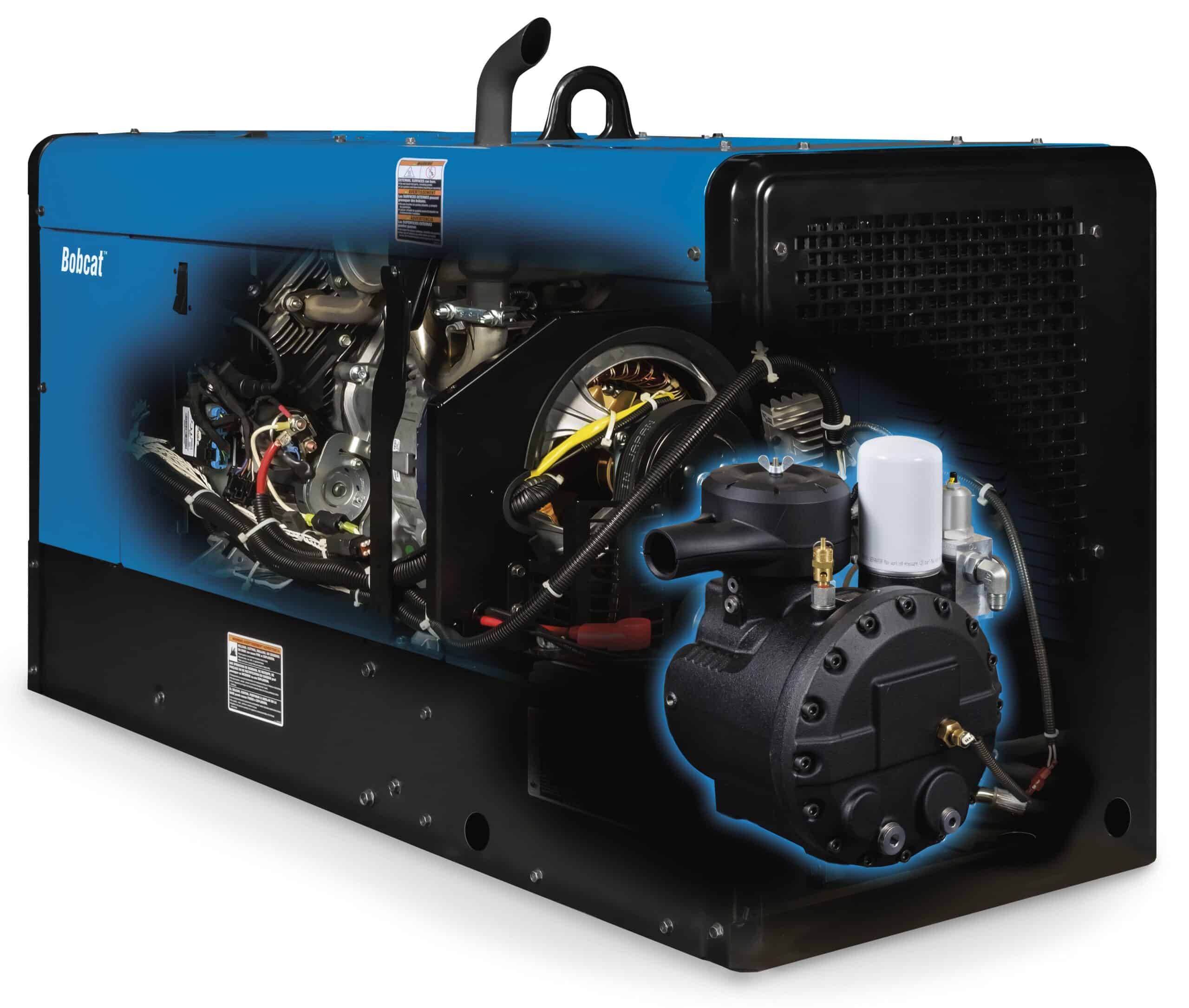

  Runs most air impact wrenches at idle and gives 100 percent deliverable air. Produces 30 cfm of air at 100 percent duty cycle and delivers 80–160 psi of air, with no storage tank. Provides four convenient air compressor access points. The air outlet connection requires a 1/2-inch NPT swivel fitting. Compressor is warrantied by Miller for three years.
• Battery Charge/Crank Assist
  Use to charge dead batteries or jump start engines
  Battery Charge 12/24 volts, 150 amps
  Crank Assist 12/24 volts, 300 amps
  Easy-To-Use
  AutoSet™ technology features preset output volts/amps based on your application.
  Use preprogrammed weld parameters or adjust manually to suit your welding style.
• Full Generator Power While Welding
  Get full auxiliary power with no arc interference, for superior weld quality
  Jobsite tools can run without interruption, helping you get more done.
• Smooth Welding Arc Performance
  Get unparalleled welding performance with 7018 and 6010 stick electrodes.
  Arcs start easily and create less spatter, delivering more of the productivity you need.
• Lighter and Smaller
  Smaller and weighs less than previous Air Pak models.
  It is easier to move and takes up less space on trucks.
• Large LCD Display
  Clearly shows output, fuel level, engine hours and maintenance intervals.
• Direct Spool Gun Connection
  Plug a Spoolmatic® or Spoolmate™ 200 spoolgun directly into the Bobcat 265 – no adapter needed.
