Lincoln Prism Mobile Fume Extractor – Mech. Clean MERV 16 Part#K1741-4

Description

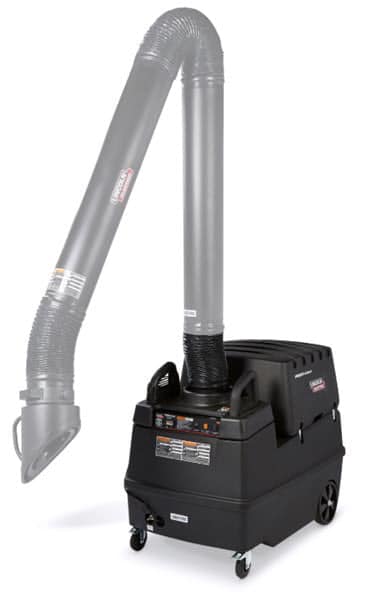

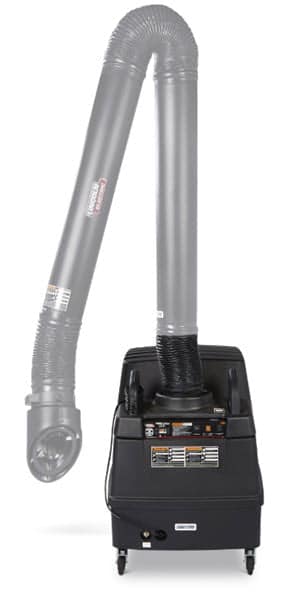

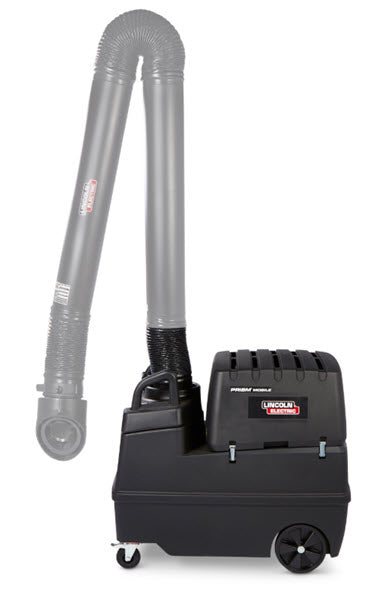

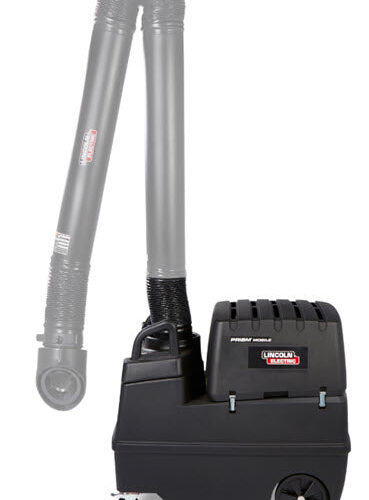

Lincoln® Prism® Mobile Welding Fume Extractor – Mechanized Cleaning MERV 16 Filter Base Unit K1741-4

Genuine Lincoln® Prism® Mobile Welding Fume Extractor Base Unit with Mechanized Cleaning MERV 16 filter features Lincoln’s RotaPulse™ automatic filter cleaning. The RotaPulse™ cleaning system requires compressed air to automatically remove accumulated particulates from your main filter; reducing downtime and extending your main filter’s life.  This low vacuum welding fume extraction system captures welding fumes at the source. With a footprint of just 40 in. x 32 in. x 48 in., the Prism Mobile is designed to move around your weld shop quickly and conveniently.

The MERV 16 main filter captures up to 95% of airborne contaminants from 0.3 to 1 micron in size. The Prism Mobile fume extractor is excellent for manufacturing and fabrication applications where MIG, TIG, Stick or Flux-Cored welding fumes are present.  It comes complete with a color-coded filter status indicator that clearly displays remaining filter life. This Prism Mobile runs on 120 volt, single-phase, 60 Hz input power.

Process

• Welding Fume Extraction



  Applications
  Industrial Applications
  Contractors
  Maintenance and Repair Operations
  Intermittent welding

  Features

• RotaPulse™
  Automatic filter cleaning system reduces maintenance and downtime.
  Extends main filter life.
• Generous Airflow
  735 CFM with OPTIONAL flexible 10 & 13 Ft. extraction arm.
  CFM level is dependent upon arm length; fan type and system maintenance.
• Internal spark arrestor
  Functions as a pre-filter for larger sized particulate.
  Prevents sparks from reaching the filter.
• Optimal motion and reach for work area
  Choose from a variety of extraction arm models or select a hose/hood set.
• Filter status indicator
  Visual guide to remaining filter life.




  Comes complete with

• Prism® Mobile welding fume extractor
• RotaPulse™ automatic filter cleaning system (requires compressed air)
• MERV 16 filter
• Pre-filter/spark arrestor
• 19 ft. (6 m) input power cord
