Lincoln POWER MIG 262P Pulsed MIG Welder Part#K5378-1

Description

Lincoln® POWER MIG® 262P Pulsed MIG Welder K5378-1

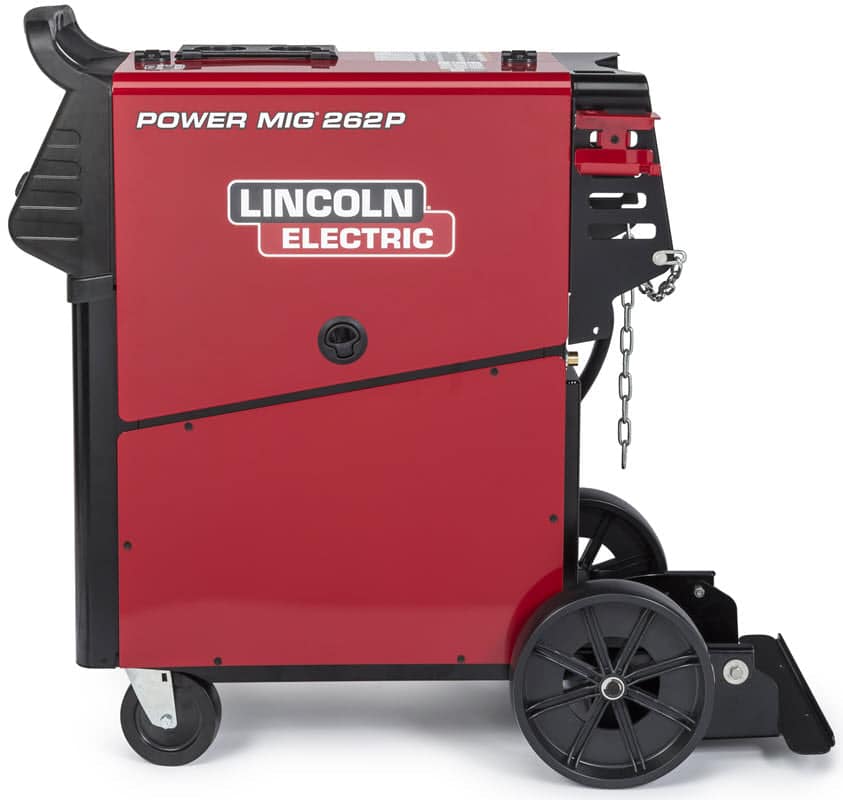

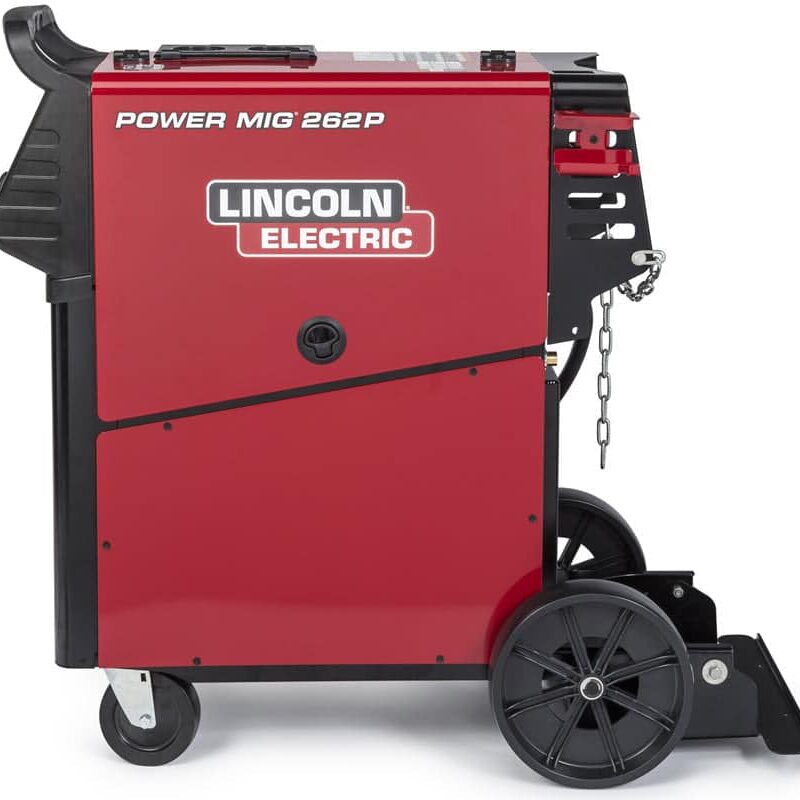

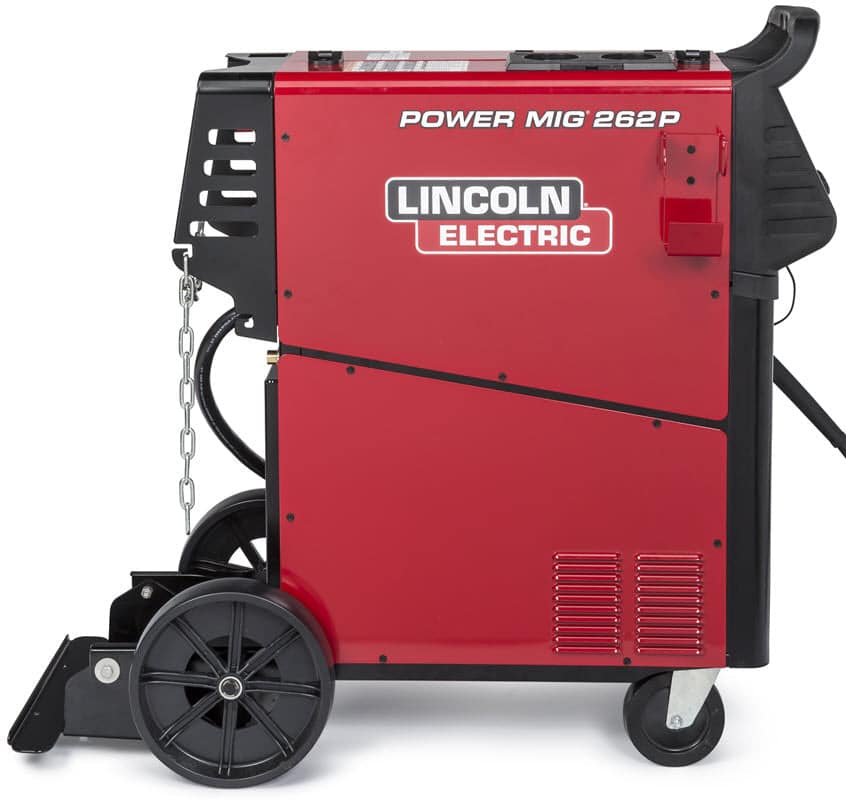

The Lincoln® POWER MIG® 262P is a 230 amp MIG welder that is optimized for Pulsed-MIG, MIG and flux-cored welding. It operates on 208-575 volt, single-phase input power. Advanced welding features include UltimArc® and ArcFX™ technology. UltimArc® is specifically designed to produce a superior pulsed-MIG welding arc. ArcFX™graphically displays how changes in voltage and wire feed speed affect your weld. Sample weld cross sections are displayed in the bright, 7 inch LED screen depicting how your bead profile will look, based on your actual welding parameters. Using this feature allows you to quickly reference the type of welding outcomes you want and fine tune your adjustments accordingly. Ready.Set.Weld™ feature removes the guesswork in setting the right welding parameters for your job. Large color display guides you through your specific welding application to ensure a great weld every time.

Built-in pulsed MIG circuitry allows for superior control of the welding arc, while reducing burn-through and warping. Pulsed MIG Mode varies weld current between peak (high heat) and background (low heat) current to provide better control of heat input. Pulsed MIG also enables flat, horizontal, vertical up, or overhead welding without a slag system. Optimized GMAW-P wave forms are readily available to use on aluminum, carbon steel, high strength low alloy steel, stainless steel, and nickel alloys.

The POWER MIG 262P has built-in spool gun circuitry, for quality aluminum MIG welds using an OPTIONAL Magnum® 250LX spool gun or Magnum® push-pull gun. The 262P produces up to 300 amps of welding output. It runs on 208V – 575V single-phase input power and has a three year factory warranty.

Processes

• MIG (GMAW)
• MIG Pulsed (GMAW-P)
• Flux-Cored (FCAW)

Applications
Metal Fabrication
Maintenance and Repair
Auto Body
Light Industrial

Features

• 300 Amp Max Output
  Perfect for autobody, general fabrication, education, and more.
• ArcFX™ Technology
  Patented technology providing instant graphical feedback on how Wire Feed Speed and Voltage affect the weld outcome.

• Ready.Set.Weld® Quick Set-Up
  Intuitive push-and-turn digital controls make setup a breeze

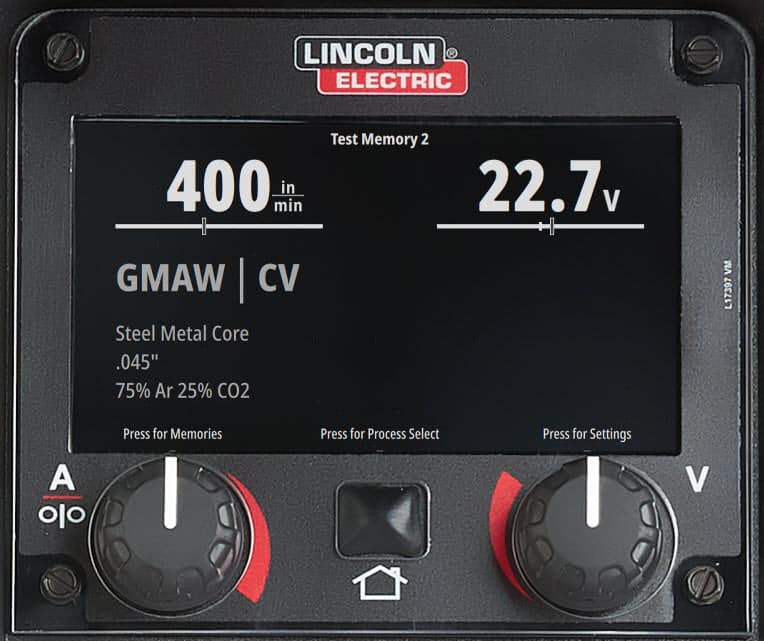

  7 inch color display guides you through the setup process Advanced options and settings are simple to access
• Pulsed MIG with UltimArc®
  Tap into superior arc performance with an optimized Pulsed MIG weld mode ideal for
  steel, stainless steel, and aluminum welding.
• Aluminum Pulse Process
  Welds 4XXX and 5XXX series aluminum for superior quality welding.
• Synergic Control
  Set weld procedures with one control.
• More Performance For Your Dollar
  Universal Input Voltage

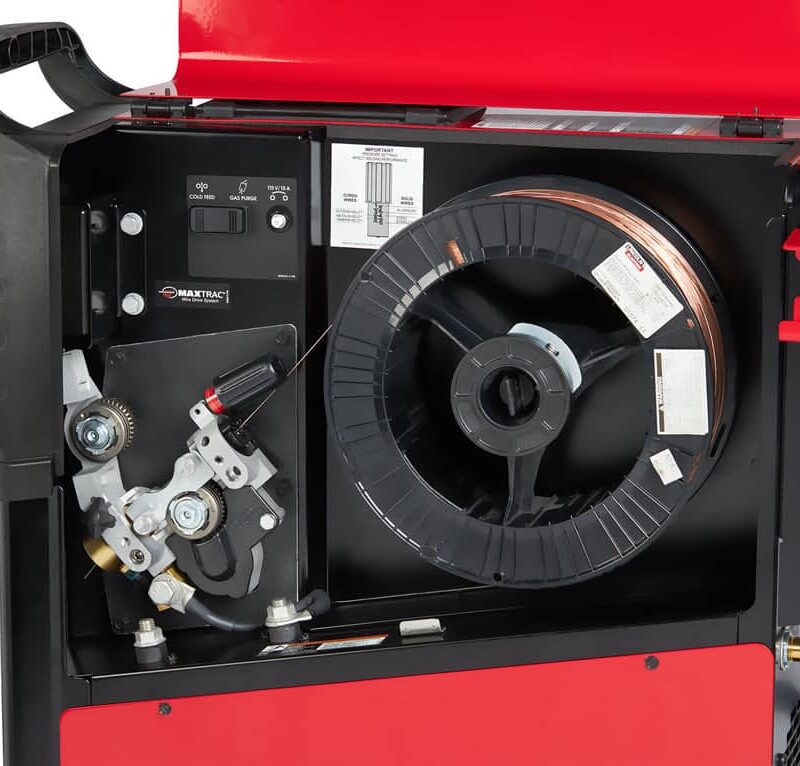

  Maxtrac® wire drive provides constant wire feed speed and more consistent welds
  Front access to 115V power outlet and gun connections
  Push-pull and Spool gun ready for aluminum projects*
  Automatic settings help achieve optimal weld parameters
• Memory Recall
  Easily save and access memories with the newly enhanced UI.
• Ergonomic Design
  Tilting gas bottle tray for ease of loading
  Ideal height for easy-to-view settings
  Easy maneuverability and small footprint
  Convenient top-mounted expendable parts compartment

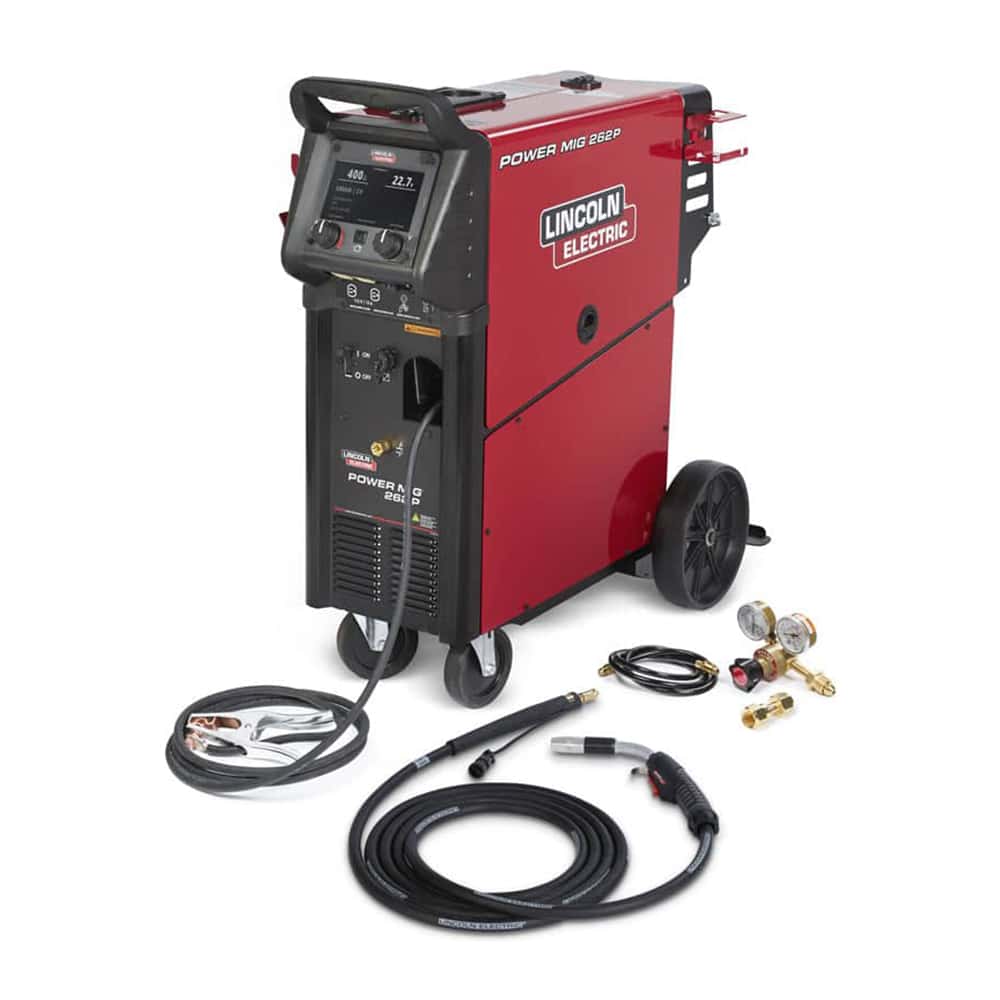

  Comes complete with

• POWER MIG® 262P MIG Welder
• Magnum® PRO 250L 15 ft. Gun
• Maxtrac® Wire Drive with .035/.045 reversible drive rolls
• Quick Storage Accessories
• 10FT Work Cable with Clamp
• Gas Regulator
• 10FT Power Cable with Plug
