Lincoln Idealarc DC600 w/VRD Multi-Process Welder Part#K1288-28

Description

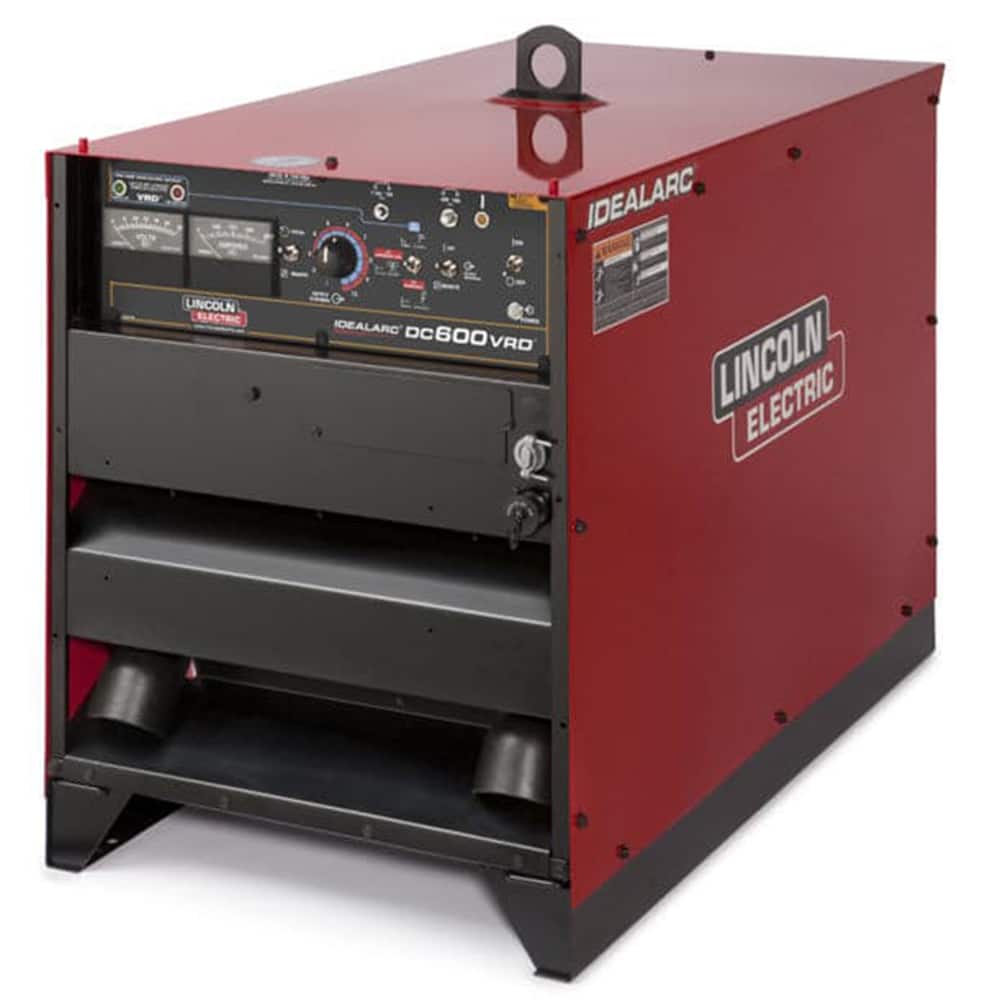

Lincoln® Idealarc® DC600 with VRD™ Multi-Process Welder K1288-28

The Lincoln® Idealarc® DC600 with VRD™ is a 600 amp, 100% duty cycle multi-process welder that is capable of MIG, Flux-cored, DC TIG and Stick welding. The installed Voltage Reduction Device™ (VRD™) lowers open circuit voltage (OCV) to less than 2 volts when not welding, increasing jobsite safety. The simple, rugged design of the DC600 has made this welder the industry leader for high amperage, heavy duty welding operations for decades.  Consistently outstanding welding results are achieved through traditional SCR rectifier arc action and analog weld controls.

The Idealarc DC600 with VRD is stack-able and can be paralleled with other DC600 units to increase its versatility.  It operates on 230-575 volt, three-phase input power and comes with Lincoln’s three-year warranty.

Processes

• MIG (GMAW)
• Flux-Cored (FCAW)
• DC TIG (GTAW)
• Stick (SMAW)
• Air-Carbon Arc Gouging (CAC-A)Applications
  Fabrication
  Construction
  Shipbuilding
  Structural
  PipeFeatures
• VRD™ (Voltage Reduction Device™)
  Reduces OCV (open circuit voltage) to less than 2 volts when not welding.
  Provides an additional measure of safety, especially when working in an environment with a higher risk of electrical shock such as wet areas and hot, humid, sweaty conditions.
  Use of VRD™ does not degrade the DC600 machine rating or the ability to drive current through cables up to 200 ft. (61 m).
• Full range output voltage control
  For easy operation and precise control.
• Standard analog ammeter and voltmeter
• Mode switch
  For selecting desired output characteristics.
• 115V, 15 amps, duplex auxiliary power receptacle
  Makes it easy to power lights, grinders and other shop tools at your work station.
• Flat-top case with a small footprint
  Can be placed under a workbench or stacked up to 3 high on top of each other.
• Windings and rectifiers
  Are protected against moisture and corrosive environments.
• Seven-year warranty on power rectifier.
  PLEASE NOTE: This is a DC TIG welder ONLY. It CANNOT TIG weld aluminum.
  Comes complete with
• Idealarc® DC600 Multi-Process Welder with VRD™ (no input power cable).
