Lincoln Flextec 350 XP (Tweco) Multi-Process Welder Part#K4272-2

Description

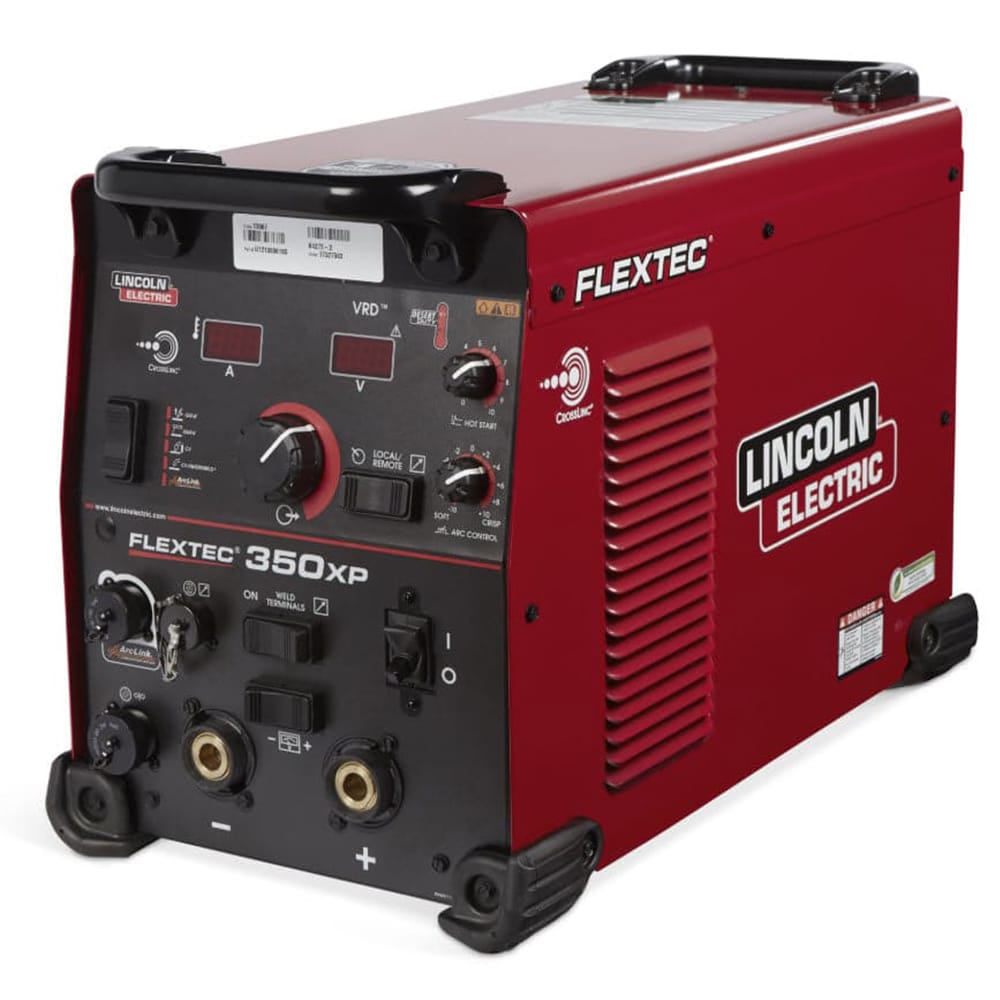

Lincoln® Flextec® 350XP Multi-Process Welder (Tweco®) K4272-2

The Lincoln® Flextec® 350XP  (Tweco®) is a 350 amp multi-process welder with CrossLinc®, that is capable of MIG, Pulsed MIG, Flux-cored, DC TIG and Stick welding. Built-in CrossLinc® technology means that the Flextec 350XP communicates with an OPTIONAL CrossLinc remote or Lincoln X Series voltage-sensing wire feeder directly through your welding leads. Full remote amperage and voltage control is achieved without the use of a separate remote-control cable. Standard voltage sensing wire feeders may also be used, but CrossLinc remote control functionality will be disabled.  For in-shop welding applications, the Flextec 350XP also supports Lincoln 14-pin (analog) and 5-pin (digital) wire feeders through amphenol receptacles on the front panel.

The Flextec 350XP is built to be a rugged performer on the harshest job sites. It is rated IP23 for welding in outdoor weather conditions. The 350X also comes with Lincoln’s Desert Duty® certification, meaning it can keep welding in temperatures up to 131 degrees F. Heavy duty alloy carrying handles, powder-coated aluminum case and shock absorbing rubber feet make this an impact resistant power source that will stand up to abuse.

The Flextec 350XP operates on 380-575 volt, three-phase input power and comes with Tweco® cable receptacles and Lincoln’s five-year warranty.

Processes

• MIG (GMAW)
• Flux-Cored (FCAW)
• DC TIG (GTAW)
• Stick (SMAW)
• Air-Carbon Arc Gouging (CAC-A)Applications
  Fabrication
  Construction
  Shipbuilding
  Structural
  Pipe

  Features

• Tweco® Cable Receptables
• Pulsed MIG modes unlocked
  When paired with a compatible Arclink capable feeder.
• Supports 14-pin and 5-pin (ArcLink) wire feeders
  As well as CrossLinc and Across-the-Arc
• CrossLinc® with True Voltage Technology™
  CrossLinc® allows for amperage and voltage control at the welding arc to improve control of your operation.
  No need for an additional control cable communication occurs directly over the weld cables.
  True Voltage Technology™ compensates for voltage drop across the welding circuit.
  TVT™ will measure the voltage drop and adjust the power source to compensate for the difference between the desired voltage and actual voltage at the weld.

• Multi-Process Power Source for all Your Welding Needs
  Optimized stick welding for both cellulosic and low hydrogen electrodes.
  Compatible with both CrossLinc® and standard voltage sensing feeders feeders for GMAW and FCAW.
  Touch-Start TIG® for reducing contamination during starts without high frequency.
• Field Proven Ruggedness and Durability
  Engineered for outdoor use and harsh environments.
  IP23 rated for use in outdoor weather conditions.
  Desert Duty rated for operation at temperatures up to 55° C (131° F).
  Trayed and potted PC boards to help withstand welding dust and humidity.
  Smart fans run at variable speeds to keep internal machine components cool.
  Tough alloy handles for lifting and impact protection.
  Lightweight aluminum powder painted case for rust protection.
  Shock Absorbing Rubber Feet for impact protection
  PLEASE NOTE: This is a DC welder ONLY. It CANNOT TIG weld aluminum.

  Comes complete with

• Flextec® 350XP Multi-Process Welder with Tweco® receptacles
• 8.5 ft (2.6m) input power cord
