Hypertherm Powermax65 SYNC Plasma Cutter w/75 & 15 Degree Handheld Torches

Description

Hypertherm® Powermax65 SYNC® Plasma Cutter with 75 and 15 Degree Handheld SmartSYNC™ Torches

The Hypertherm® Powermax65 SYNC®, with 75 and 15 degree SmartSYNC™ handheld torches, is a complete 65 amp plasma cutting and gouging package. The 25 foot, 75 degree plasma torch is ideal for cutting mild steel up to 3/4 inch thick. The 25 foot, 15 degree plasma torch is specifically designed to make plasma gouging operations more comfortable and efficient. Both SmartSYNC™ plasma torches use Hypertherm’s proprietary one-piece consumable cartridge, for up to 5X longer consumable life and more consistent cuts. A single, color-coded cartridge contains all the necessary consumables for plasma cutting or gouging, in one convenient assembly.  The smart cartridge eliminates the need to individually replace the plasma cup, tip, electrode and swirl ring – saving time and reducing parts inventory.  RFID chips in both the consumable cartridge and SmartSYNC torch take the guesswork out of your machine set up by automatically setting the Powermax65 SYNC to the correct cut/gouge settings – no manual adjustments are necessary. The RFIDs also communicate the cartridge’s end-of-life status back to the plasma cutter to ensure maximum performance and superior metal cuts.

The Powermax65 SYNC comes standard with Auto-Voltage™ detection and operates on single or 3-phase, 200V to 600V, 50/60 Hz input power. There is no need for manual voltage linking. The Powermax65 SYNC comes complete with both a 25 ft. SmartSYNC 75 degree handheld plasma torch and a 25 ft. 15 degree handeld gouging torch. It also comes with Hypertherm’s 3-year factory warranty.

Process

• Plasma Arc Cutting (PAC)
• Plasma Arc Gouging (PAG)

Features

• Easy to identify single-piece cartridge consumables
  Are color coded by process to eliminate parts mix-up and simplify consumable inventory management.
• New SmartSYNC™ torches with the Hypertherm® cartridge
  Automatically set the correct amperage and operating mode, eliminating setup errors.
• End of life detection
  Lets the operator know when it’s time to change the cartridge.
• Less operator fatigue
  When using hand torches with Hypertherm’s new flexible lead. The lead has the same robustness of previous lead jacket material.
• Simplified operation
  Minimizes downtime, troubleshooting, waste and training time.
• Advanced cartridge consumable design
  Provides up to twice the life for hand cutting and improved quality over life in mechanized setups compared to standard consumables.
• Access cartridge data
  For performance tracking, analyzing usage patterns.

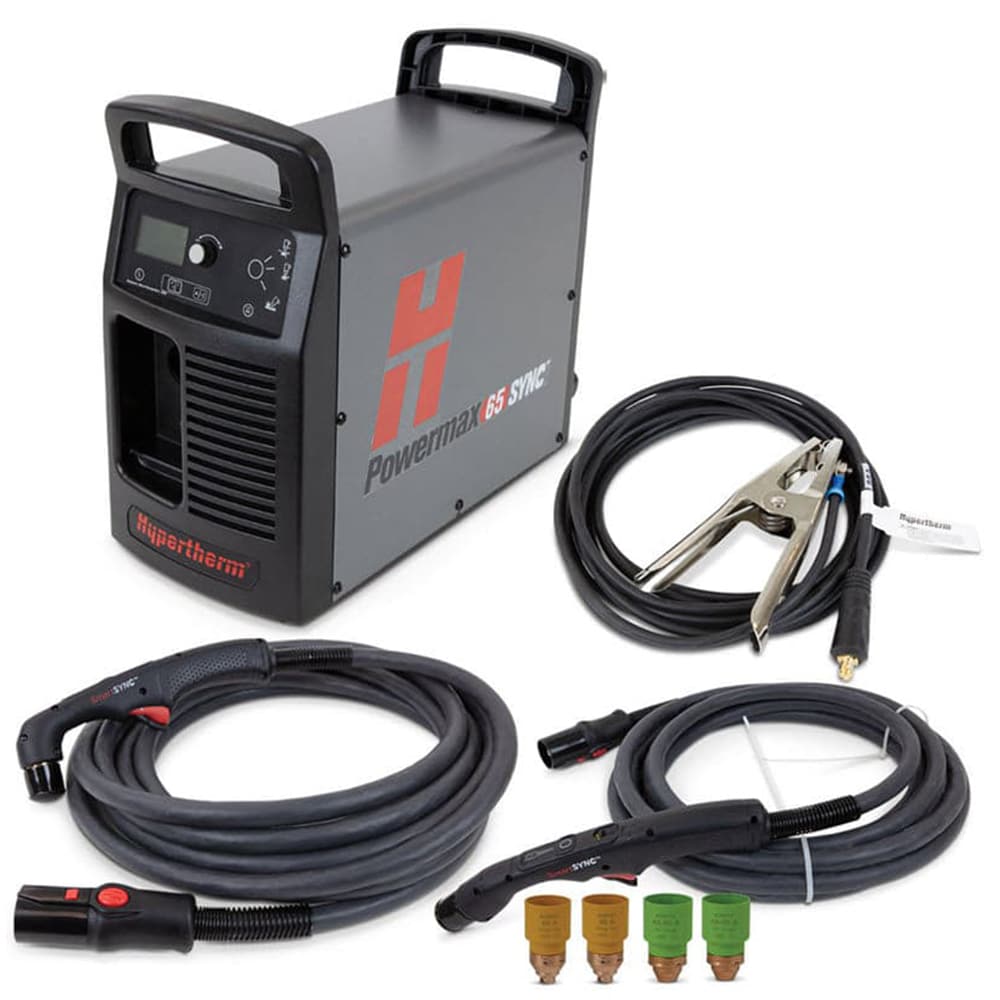

Comes Complete With:

• Powermax65 SYNC® plasma cutter
• SmartSYNC™ 75 degree plasma torch with 25 ft. leads
• SmartSYNC™ 15 degree plasma torch with 25 ft. leads
• 2 – 65 amp consuamble Smart Cartridge (#428931)
• 2 – 45-85 amp consuamble Max Control Gouging Smart Cartridge (#428933)
• 10 ft. input power cable
• Work lead with ground clamp
