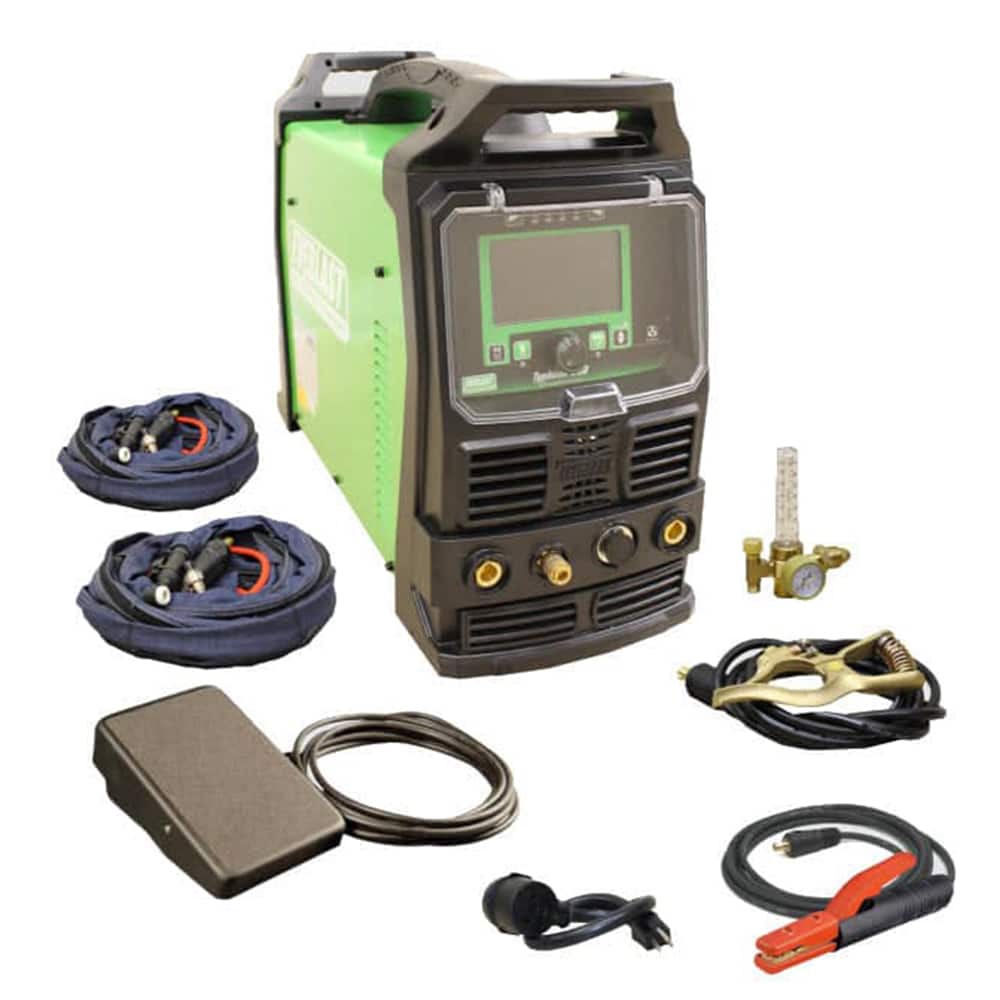

Everlast Typhoon 230 AC/DC TIG Welder Part#TYP-230

Description

Everlast Typhoon 230 AC/DC TIG Welder TYP-230

The Everlast Typhoon 230 is a 230 amp AC/DC TIG welder that sets the industry standard with a 70% duty cycle. Large 5.1″ HD LCD screen features a sharp, high contrast layout of functions and parameters on a single screen layout, without complicated and hard to access hidden menus. New functions of amplitude control in AC and split positive and negative wave form control offer astounding advances of tungsten life, arc quality and stability over older wave form technology. The Typhoon has five AC wave forms, Advanced Square, Soft Square, Triangular, Sine and Trapezoidal wave forms, which offer the maximum level of puddle and bead control while welding Aluminum. With expanded memory option up to 30 programs and the ability to lock in programmed settings to prevent tampering, the unit helps customers maintain quality control levels where multiple users are present or where a WPS is in place. Other performance-driven features such as DC pulse wave form shaping and a new type of solid state HV/HF starting for TIG secures the Typhoon 230’s place as a premier, next level TIG welder in all metals categories.

The Typhoon 230 is a premier TIG welder, but it’s also a top-level stick welder with features such as AC/DC stick output, adjustable AC balance and Frequency, and excellent 6010 performance. Arc force control (dig) and hot start adjustment to combine to run E7018 as smooth as any welder out there. The combination of the features makes this unit perfect for welding out in the field or in the shop doing fabrication and production welding. The unit has up to 200Amp Stick output at 70% duty cycle which means this unit is perfect for running root, fill and cap passes. The unit’s ability to operate on 120V or 240V improves versatility on the job. The Typhoon 230 has an industry best five year factory warranty.

Process

• AC/DC TIG (GTAW)
• Stick (SMAW)

Features

• Digital IGBT Inverter MIG Power design makes it one of the most powerful, yet smallest in its class.
• Large Digital Color Display makes the main settings stand out at a distance so you can always see them at a glance from a distance. Color coding and graphics help you quickly identify and set parameters.

• 5 AC Wave forms: Adv. Square, Soft Square, Trapezoid, Triangle, and Sine.
• 70% Duty Cycle TIG and Stick at max output.
• Split AC Wave form control technology: Select wave form shape of individual half-waves in AC.
• Independent Amplitude Control over EN and EP Amps in AC.
• DC Wave form shaping for more control.
• DC Pulse up to 999.9 Hz.  AC Pulse up to 400 Hz.
• AC Adv. Pulse (Mixed AC/DC pulse up to 10 Hz) increases Aluminum penetration similar to 350A or greater of standard machines.
• AC frequency up to 400Hz.
• True low amp starts measured at 2A DC and 3A AC.
• 5 Year Parts and Labor Warranty Simply the best warranty in the business. Who else offers this without paying extra, or giving you a long list of exclusions?
