Description

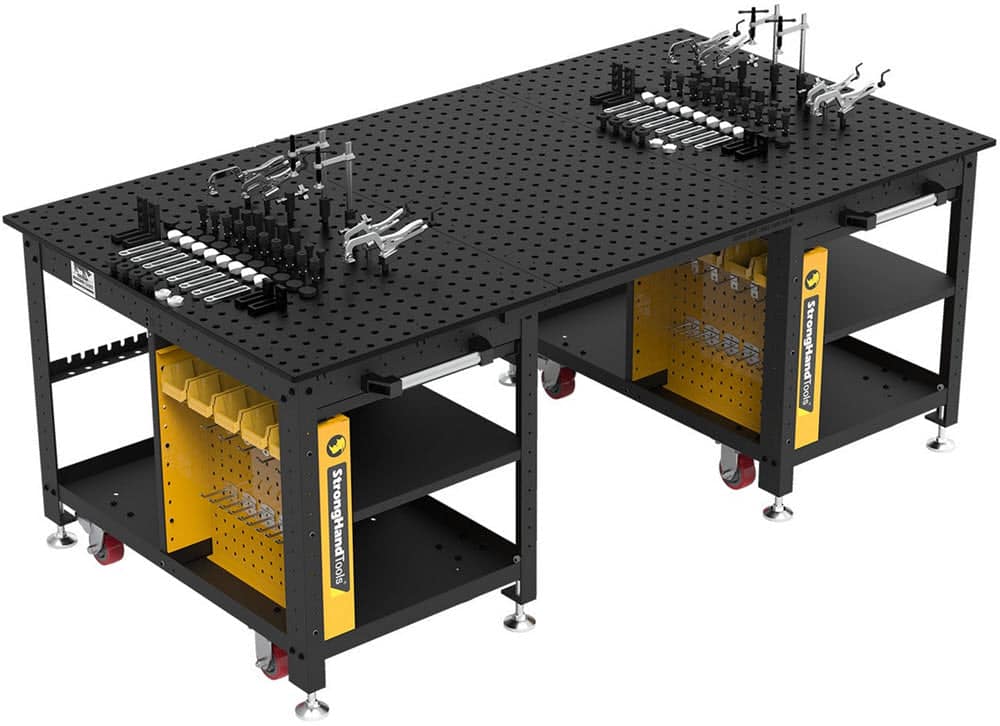

BUILDPRO® Rhino Bridge® Package TD5-4830Q-EX3
Genuine BuildPro® Rhino Bridge Package comes complete with two 48″ X 30″ Rhino Carts®, two 66-piece fixturing kits and one Rhino Plate Connecting Bridge Kit. When connected, the two Rhino Carts and connecting plate form a 90″ X 48″ work surface. Each 48″ X 30″ Rhino Cart can also be used independently, for maximum shop flexibility. Both Rhino Carts feature enhanced tool mounting options. The frame legs come with 7mm holes, for mounting tools, shelves and other custom fixtures. Two slag trays run the length of the underside of each table, for easy slag and dust removal.
The Rhino Bridge Package is ideal for shops that fabricate, weld, or repair a variety of different-sized projects. The heat treated tabletops and connecting plate are resistant to wear, weld spatter and rust. They are also reversible. Simply flip the tabletop, or connecting plate, for a new work surface. The CNC hole 2 x 2 spacing pattern allows for accurate and repeatable setups. All clamps and fixturing elements are designed to be placed and easily adjusted at the top of the table. Steel table legs include casters and leveling legs for mobile or stationary use, inside or outside the shop. Shelves, racks, and pegboard panel provide lots of convenient storage to keep all your tools within reach while working.
Features
- Dual 48″ X 30″ Rhino Carts with Connecting Bridge Kit
Form a 90″ X 48″ work surface when fully connected.
Each Rhino Cart can be used as a separate, independent work station.
The 30″ X 48″ Rhino Bridge Plate comes with all the necessary hardware to connect both Rhino Carts together.
- Two 66-Piece Fixutring Kits
Provide all the clamping and positioning tools needed to complete many common welding projects.
- Enhanced Mounting Options on the Legs
The F3 has a grid system of 7mm holes added to the frame and legs, making it easier to attach and mount accessories to customize your cart.
- Versatile Slag Trays
Keep your underneath workspace clean and provide convenient slag/dust removal
- Improved Electrical Access
Cutouts are now located in the center divider panel to provide easy access for electrical connections underneath the cart.
- Reversible Tabletop and Connecting Plate
Nitrided and black oxide table plate is reversible as well as weld spatter, rust and scratch resistant.
- CNC Hole Pattern
Accurately position parts in CNC precision bored 5/8 dia. holes in 2 x 2 spacing pattern.
- Store and Organize
Shelves, racks, and a pegboard panel allow you to store, organize, and keep clamps and accessories within reach.
- Locking Casters
Steel legs are equipped with four locking casters and leveling feet for mobile or stationary use.
- Compatible with 5/8″ fixturing elements
Compatible with all MAX Clamps, Components, and Modular Fixturing Kits except Sliding Channel Clamps, Sliding Channel Bases, Slot filler Kit and T-Slot Adapter.
Comes Complete With
- 2 Rhino Cart® TD5-4830Q-F3
- 1 Rhino Plate Connecting Bridg Kit TDPK311
- 4 Inserta Clamps UDN5150
- 4 Side Clamps TCX5210
- 4 2.3″ Inserta Pliers PTT522K
- 4 4″ Inserta Pliers PTT634K
- 4 Magnetic V-Clamp Pads T54217
- 20 Ball Lock Bolts T55057
- 4 Locating Pins T54201
- 16 D Stop Bars T50632-01
- 4 2″ Right Angle Brackets T50304
- 4 4″ Right Angle Brackets T50305
- 8 1.5″ Stops T54203
- 8 2″ Stops T54205
- 16 V-Blocks T54216
- 8 V-Block Spacers T54211
- 24 Magnetic Rest Buttons T50737
